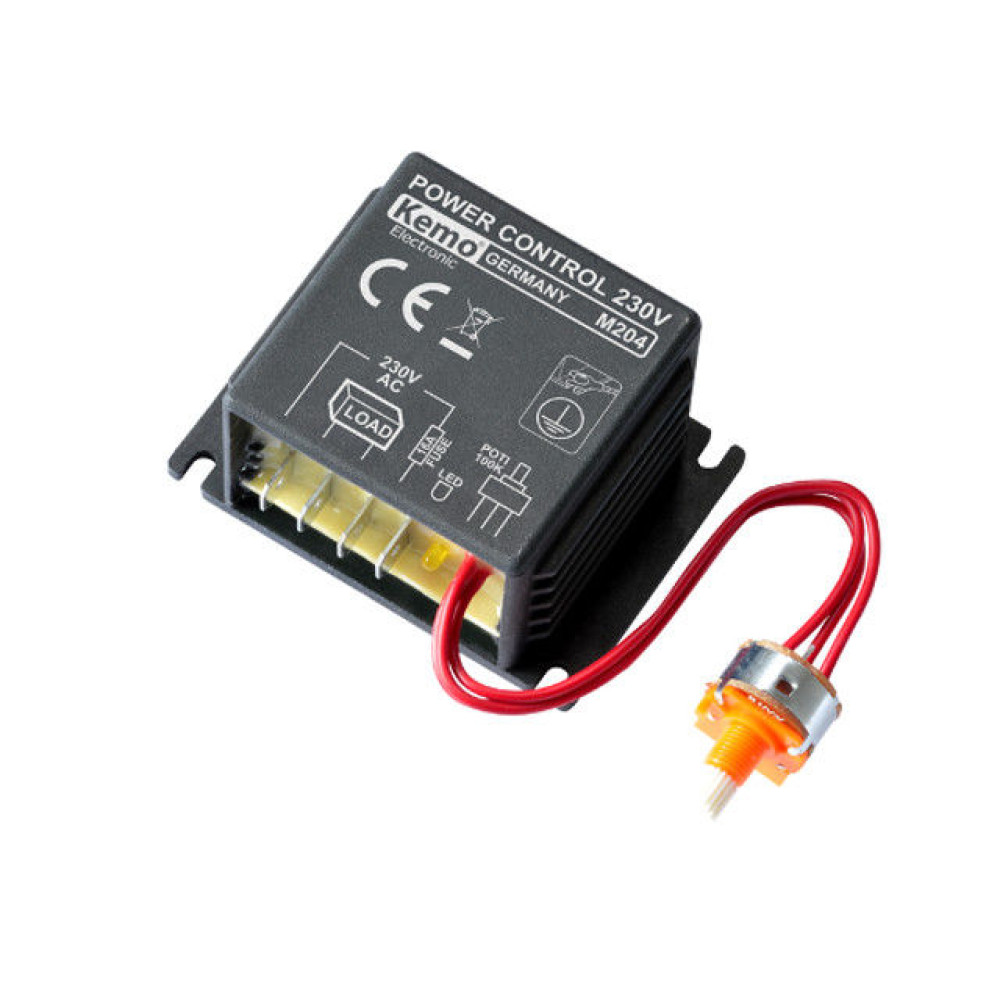

Modul regulator za grijače 230V 16A M204 Kemo

Operating voltage 220 - 240 V/AC, 50 - 60 Hz
Output voltage pulsating, approx. 0.8 Hz with adjustable pulse length, switching on and off in phase zero crossing, respectively. Thus, almost no radio-interferences occur.
Max. current carrying capacity approx. 16 A
Connection via flat plug 6.3 mm
Current consumption without load approx. 0.3 W
Aluminium metal case with cooling rib, potted
Regulation via a connected and included potentiometer approx. 0 - 100%. The potentiometer is fully insulated on the operator side.
Operation display with installed LED
Dimensions approx. 55 x 50 x 36 mm (without mounting straps)
